The Amflow PL Carbon (800Wh) Medium Satin Silver is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
The Amflow PL Carbon 800Wh 2025 gives you the same ultra-modern carbon frame, the same DJI Avinox drive system (up to 120Nm peak) and the same big 800Wh integrated battery as the Pro model – but with a more accessible component package. Same performance DNA, better value.
Ideal for UK riders who want a lightweight, full-power e-MTB that can handle proper trail and enduro riding, but don’t need every top-tier fork, brake or drivetrain part to be the most expensive one.

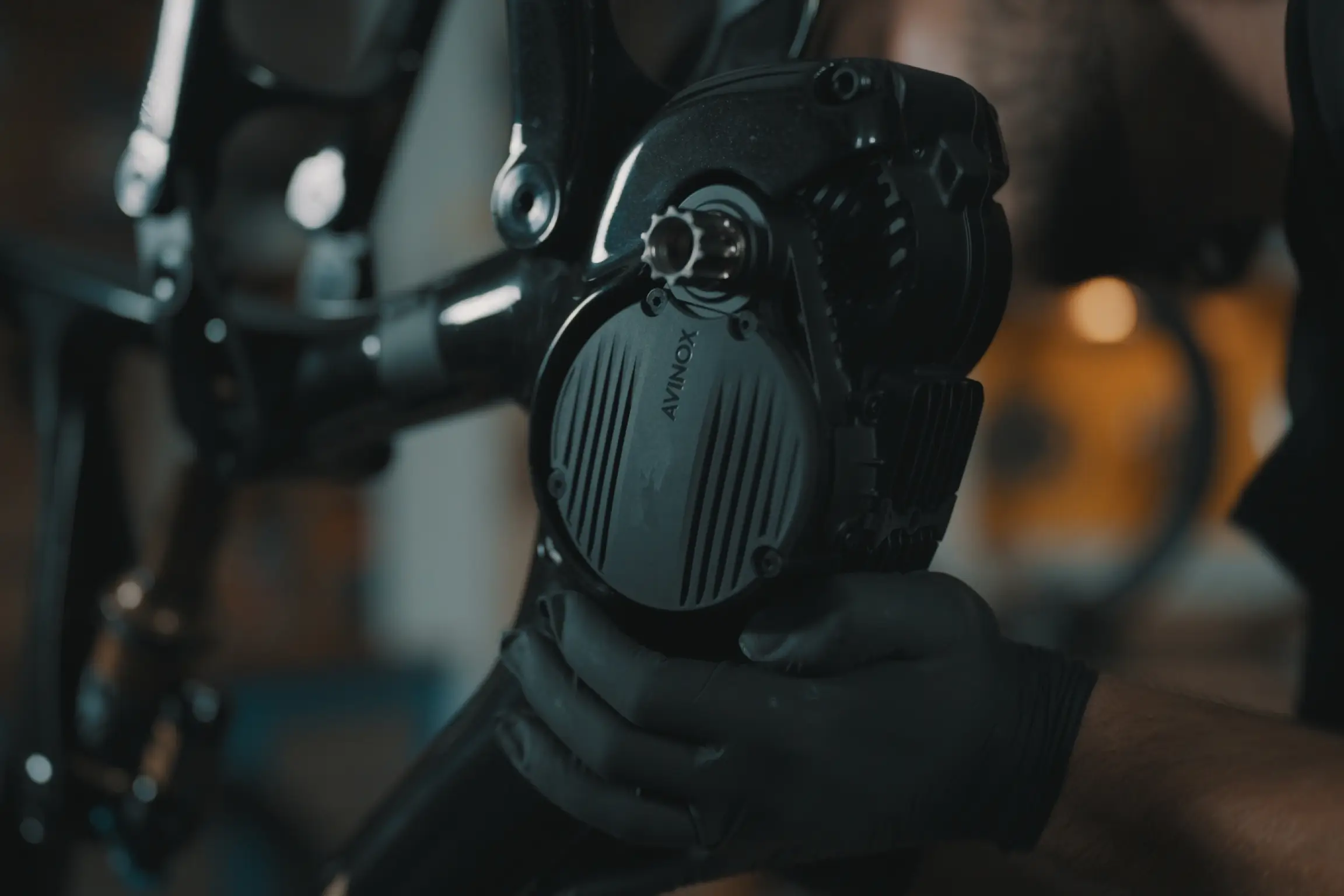

DJI Avinox drive – same as Pro
Built-in touchscreen display
Same platform as PL Carbon Pro
You don’t downgrade the battery on this model – the PL Carbon still gets the 800Wh high-density pack with the same smart battery management as the Pro. That’s a big deal for UK riders doing long loops, uplifts or bike-park days.
Plenty of energy on tap to match the 120Nm peak the Avinox system can deliver.
The important bit: you don’t lose the frame, motor or battery by choosing the non-Pro. You still get the full-carbon chassis, the DJI Avinox motor and the 800Wh pack. The difference is in the finishing kit.
Summary: both are very powerful and very capable – choose Carbon for value, Pro for maximum spec.
Frame: Full carbon, 2025 platform
Battery: 800Wh integrated
Drive unit: DJI Avinox, up to 120Nm peak
Use: Trail / all-mountain / enduro
Motor: DJI Avinox, 105Nm continuous
Peak: up to 120Nm / 850W

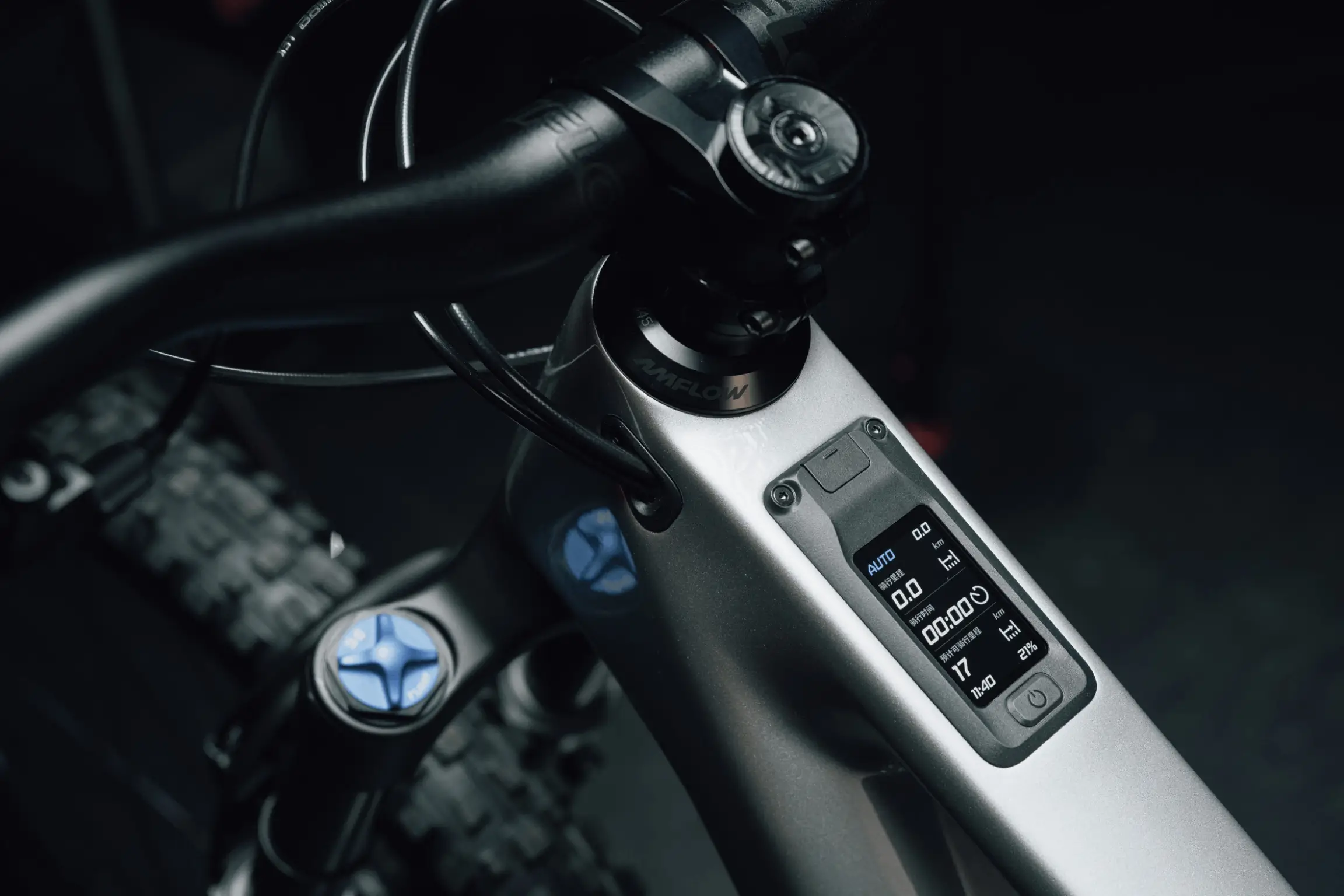

Display: Frame-mounted 2” OLED touchscreen
Assist limit: 25 km/h (15.5 mph)
The Amflow PL Carbon 800Wh is a really nice sweet spot in the range, because you get all the new technology – the DJI Avinox mid-drive, the 800Wh high-density battery, the frame-integrated OLED display and the full-carbon chassis – but you don’t have to pay for every single top-tier suspension and brake upgrade. For most UK riders, especially those riding trail centres, South Downs, Welsh trail parks or Alpine trips a couple of times a year, this is the more sensible build.
Because it uses the same drive unit as the Pro, it still competes directly with the big-brand e-MTBs running Bosch Performance Line CX / Smart System, Shimano EP series or Yamaha PW-X style motors – but with higher peak torque (up to 120Nm), a larger 800Wh battery on board, and a total bike weight that’s impressively low for this power class. That makes it very interesting for riders who want a lightweight but full-power electric mountain bike, not a low-power SL bike.
Available now at eBike-Centre with UK 25 km/h (15.5 mph) assistance, workshop backup and advice on which Amflow spec to choose.
| Specification | Details |
|---|---|
| Frame | Amflow PL Carbon Frame – Satin Silver / 150 mm rear travel / Compatible with 27.5" & 29" rear wheels |
| Motor System | DJI Avinox M1 Drive Unit (105 Nm) |
| Display | Avinox 2-inch OLED Control Display + Wireless Controllers (left & right) |
| Battery & Charger | Avinox Integrated Battery 800 Wh / Avinox Fast Charger 12A (508 W) |
| Fork | 2026 FOX 36 Performance – 160 mm travel, GRIP Damper, 15×110 mm, 44 mm rake |
| Rear Shock | 2026 FOX Float Performance – Trunnion 185×55 mm, EVOL Air Sleeve, 2-position lever |
| Drivetrain | SRAM Eagle 70 Transmission Derailleur / Single Click Shifter / XS-1270 10-52T Cassette / E-MTB 34T Chainring / Eagle 70 Transmission Flattop Chain / Avinox SL Crank (M/L 155 mm, XL/XXL 160 mm) |
| Brakes | Magura MT5 hydraulic disc brakes, HC lever, 4-piston caliper, 203 mm MDR-C rotors front & rear |
| Wheels | Amflow HMA-30 Alloy 29" rims, 30 mm internal, 32H, tubeless ready / SAPIM E-Light J-bend spokes / Alloy hubs 15×110 mm (front) & 148×12 mm (rear), 21T |
| Tyres | Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR / Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR |
| Cockpit | Amflow Enduro Alloy Handlebar (35 mm rise, 800 mm wide, 5° up, 9° back) / Amflow Enduro CNC Stem, 35 mm length, Ø35 mm clamp |
| Seatpost & Saddle | KS Rage-i Dropper – M: 150 mm / L: 170 mm / XL: 190 mm / Selle Royal SRX Plus Saddle |
| Accessories | Quick Start Guide, Torque Wrench (3–25 Nm, Hex 2-6 mm, Torx T25), Shock Pump, Front & Rear Lights |
Both bikes share the same carbon frame, DJI Avinox motor and 800 Wh battery. The main difference is the component level.
| Component | PL Carbon (800Wh) | PL Carbon Pro (800Wh) |
|---|---|---|
| Frame | Carbon, Satin Silver, 150 mm, 27.5/29 compatible | Carbon, Cosmic Black, 150 mm, 27.5/29 compatible |
| Motor | Avinox M1, 105 Nm | Avinox M1, 105 Nm |
| Battery | Avinox Integrated 800 Wh | Avinox Integrated 800 Wh |
| Display / Controls | 2" OLED, wireless L/R controllers | 2" OLED, wireless L/R controllers |
| Fork | FOX 36 Performance, 160 mm, GRIP | FOX 36 Factory, 160 mm, GRIP X2 |
| Rear Shock | FOX Float Performance, EVOL, 2-pos | FOX FLOAT X Factory, EVOL, 2-pos + LSC |
| Drivetrain | SRAM Eagle 70 Transmission, XS-1270 10-52T, Single Click | SRAM X0 Eagle Transmission, XS-1295 10-52T, AXS Pod |
| Brakes | Magura MT5, 4-piston, 203 mm MDR-C | Magura MT7 Pro, 4-piston, 203 mm Storm HC |
| Wheels | Amflow HMA-30 Alloy, 32H, 30 mm, tubeless | Amflow HMC-30 Carbon, 28H, 30 mm, tubeless |
| Handlebar | Amflow Enduro Alloy, 35 mm rise, 800 mm | Amflow Enduro Carbon, 25 mm rise, 800 mm |
| Seatpost | KS Rage-i dropper (150-190 mm) | FOX Transfer Factory (adj. in 5 mm steps) |
| Best for | Same Amflow platform, better value, UK trail riders | No-compromise build, aggressive/enduro riders |
| Colours | Satin Silver |
| Sizes | Large, Medium, X-Large, XX-Large |
| Brand | Amflow |
| Barcodes | 190021116696, 190021116764, 190021116771, 6937224119826 |
| SKUs / Part Numbers | CP.EB.00000032.01, CP.EB.00000033.01, CP.EB.00000034.01, CP.EB.00000035.01 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
