BGA0364-540
The Ultimate C5+ HMB S5 Low Step 540wh 57cm Metallic Orange (mat) is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
The Gazelle Ultimate C5+ HMB blends premium urban style with long-range touring ability in a quiet, low-maintenance package. A stiff, beautifully integrated chassis and active yet comfortable position give confident handling, while Bosch’s whisper-quiet Performance Line motor (75 Nm) and Gates belt drive keep every mile smooth and clean.
Dynamic metallic finishes and superb integration make the Ultimate a head-turner — but it’s the ride that wins you over: air-sprung fork, hidden suspension seatpost and an adjustable stem for day-long comfort on tarmac or light gravel.
:focus(true):quality(70))
)

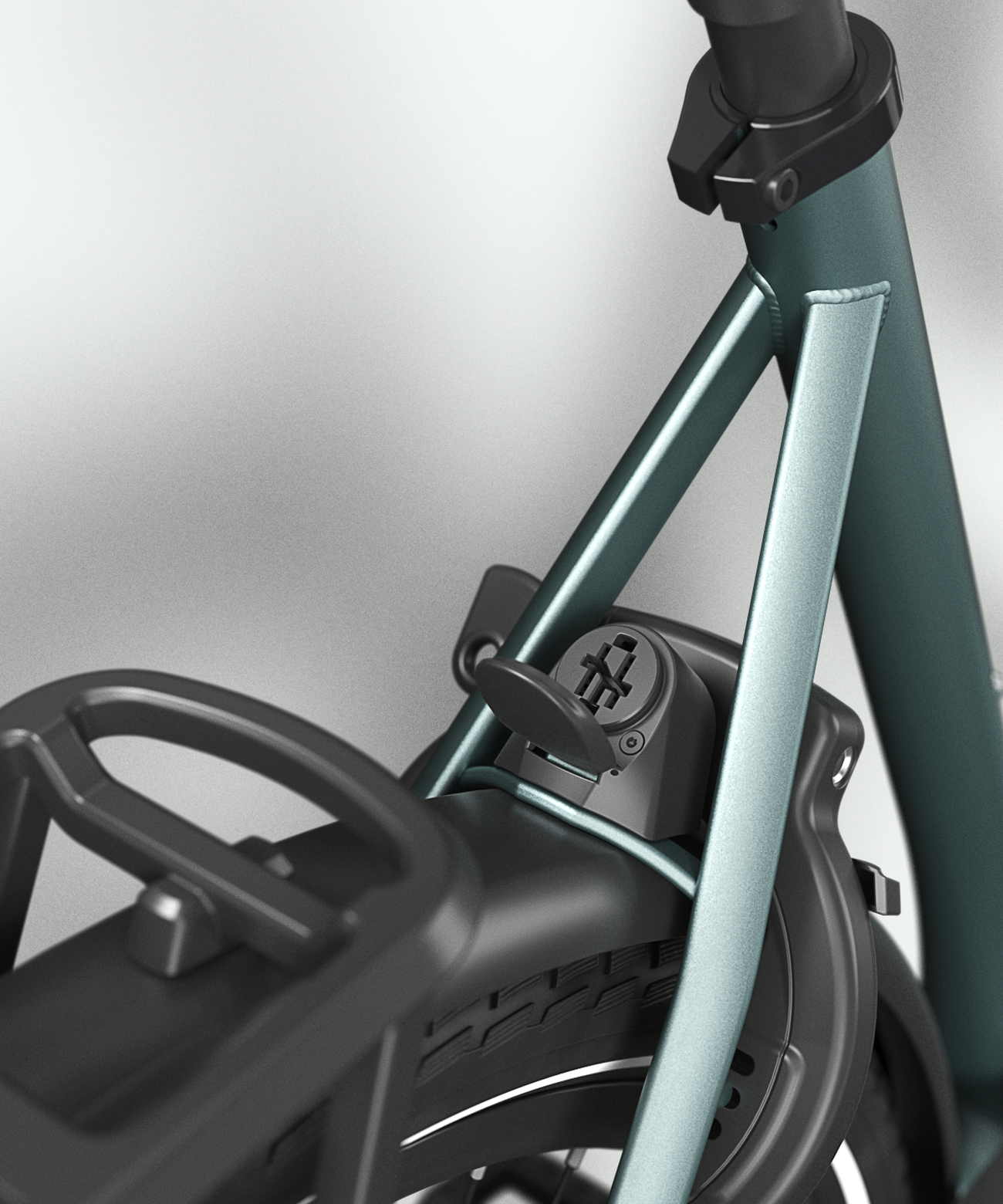

Air-suspension telescopic fork
)
Suspension seatpost + adjustable stem
)

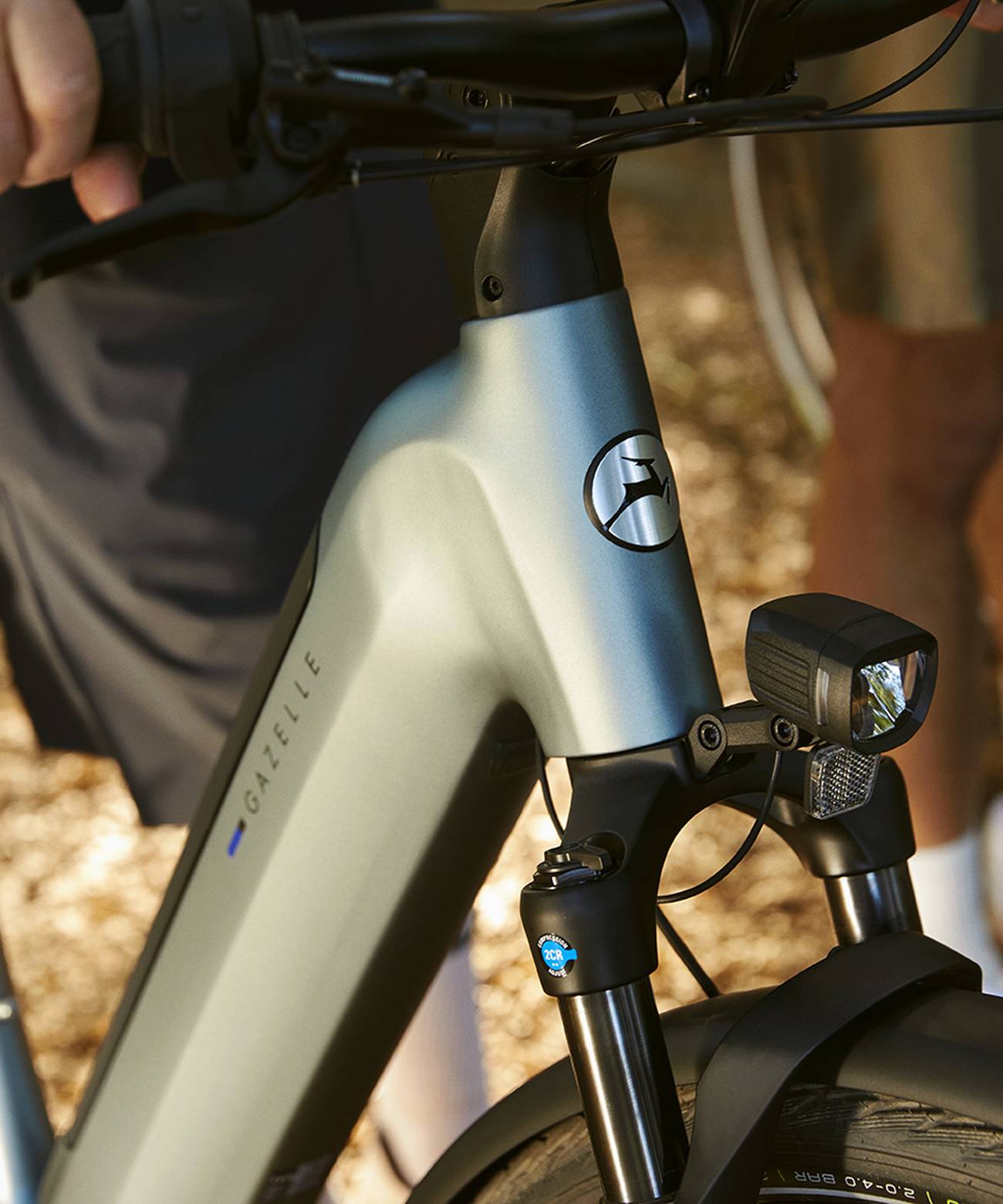

Bosch Performance Line + Gates belt
| Specification | Details |
|---|---|
| Motor | Bosch Performance Line (Smart System), 75 Nm, UK 25 km/h (15.5 mph) |
| Battery | 540 Wh Intube; PowerMore 250 compatible |
| Display | Bosch Kiox 300 colour display (nav & Bluetooth) |
| Drivetrain | Gates CDX belt + Shimano Nexus 5 hub |
| Comfort | Air-sprung fork, suspension seatpost, adjustable stem |
| Estimated range | Eco ~130 km · Tour ~75 km · Auto ~60 km · Turbo ~50 km |
| Spec | 540 Wh |
|---|---|
| Capacity / Voltage | 15 Ah / 36V (Intube) |
| Charge time (2A / 4A) | ~7h 42m / ~4h 54m |
| Range (Eco/Tour/Auto/Turbo) | 130 / 75 / 60 / 50 km (terrain & rider dependent) |
| Extender | PowerMore 250 compatible (>790 Wh total) |
The Gazelle Ultimate C5+ HMB is a premium urban-touring e-bike built around a stiff, fully integrated aluminium frame for confident handling and a clean look. The Bosch Performance Line Smart System (75 Nm) delivers smooth, quiet assistance up to the UK-legal 25 km/h (15.5 mph), while the Gates CDX belt drive and Shimano Nexus 5 e-bike hub provide silent running and ultra-low maintenance. A comfort package—air-sprung telescopic fork, hidden suspension seatpost, ergonomic cockpit and adjustable stem—keeps long rides fresh. Navigation and ride data are crystal clear on the Bosch Kiox 300 colour display, with the eBike Flow app enabling over-the-air updates, activity tracking and route guidance. If you want a quiet, clean and durable commuter that’s equally happy weekending on canal paths and light gravel, this is it.
This 540 Wh Intube version is ideal for daily commuting and fitness rides, balancing weight and range. Add the Bosch PowerMore 250 extender for extra headroom on tours. Available now from eBike-Centre (Chichester) with UK 15.5 mph setup, test rides and full Bosch-certified service support.
| Specification | Details |
|---|---|
| Highlights | Matte finishes (635 Matte, 906 Matte) • Air-suspension fork • Active-upright position • Bosch Smart System integration |
| Weight (approx) | 26.4 kg (without battery) |
| Maximum total weight | 150 kg (rider + cargo + bike) |
| Riding position | Active / Upright |
| Frame | Stable aluminium frame (70.5° head / 71.5° seat), fully integrated battery/motor/cables, premium finish. |
| Frame shapes / sizes | High-Step & Low-Step | 46 / 49 / 53 / 57 / 61 / 65 cm |
| Fork | SR Suntour NVX32 Air, telescopic air suspension, lockout |
| Rims | Ryde Zac25 double-walled aluminium (front/rear) |
| Hubs | Shimano front • Shimano Nexus 5 freewheel rear |
| Tyres | Schwalbe The Green Marathon 55-622 (28”) • 80% recycled/renewable materials |
| Gearing | Shimano Nexus 5 internal hub gear • Shimano shifter |
| Drivetrain | Gates CDX belt • 46T chainring • Delta crankset |
| Brakes | Shimano MT200 hydraulic discs • 180 mm front / 160 mm rear • BL-MT200 levers |
| Cockpit | Ergon GP1-L ergonomic grips • Adjustable stem with steering lock |
| Saddle / Seatpost | Selle Royal Essenza Plus Gel • Suspension seatpost |
| Front light | Herrmans MR9 LED • 60 Lux • Battery powered |
| Rear light | Spanninga Commuter Glow • Battery powered |
| Motor | Bosch Performance Line (Smart System), 75 Nm, mid-drive, up to 25 km/h (15.5 mph UK) |
| Battery | 540 Wh Intube (15 Ah @ 36 V) • Frame-integrated • PowerMore 250 compatible |
| Estimated range | Eco ~130 km • Tour ~75 km • Auto ~60 km • Turbo ~50 km (conditions dependent) |
| Charge time | 2A: ~7 h 42 m • 4A: ~4 h 54 m |
| Display | Bosch Kiox 300 colour LCD • Removable • Bluetooth (eBike Flow app) |
| Lock | AXA frame lock (plug-in chain compatible) |
| Kickstand | Ursus Mooi centre stand |
| Carrier | Aluminium MIK HD rear rack • 27 kg max • MIK profile |
| Warranty | Frame 10 yrs • Fork 5 yrs • Paint 5 yrs • Battery/Motor/Display 2 yrs • Other parts 2 yrs |
| Colours | Metallic Orange (mat) |
| Sizes | 49cm, 53cm, 57cm, 61cm |
| Brand | Gazelle |
| Model Year | 2026 |
| SKUs / Part Numbers | BGA0362-540, BGA0363-540, BGA0364-540, BGA0365-540 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
