The Trek Checkpoint+ SL 5 is a lightweight electric gravel bike built for long-distance adventures, fast mixed-surface rides and all-day comfort. Powered by the ultra-quiet TQ HPR60 motor and a 360 Wh integrated battery, it delivers natural-feeling assistance in a sleek carbon gravel platform.
Carbon gravel e-bike | TQ HPR60 harmonic pin-ring motor | 360 Wh battery | Shimano GRX 1×12 | IsoSpeed comfort | Up to 50 mm tyre clearance

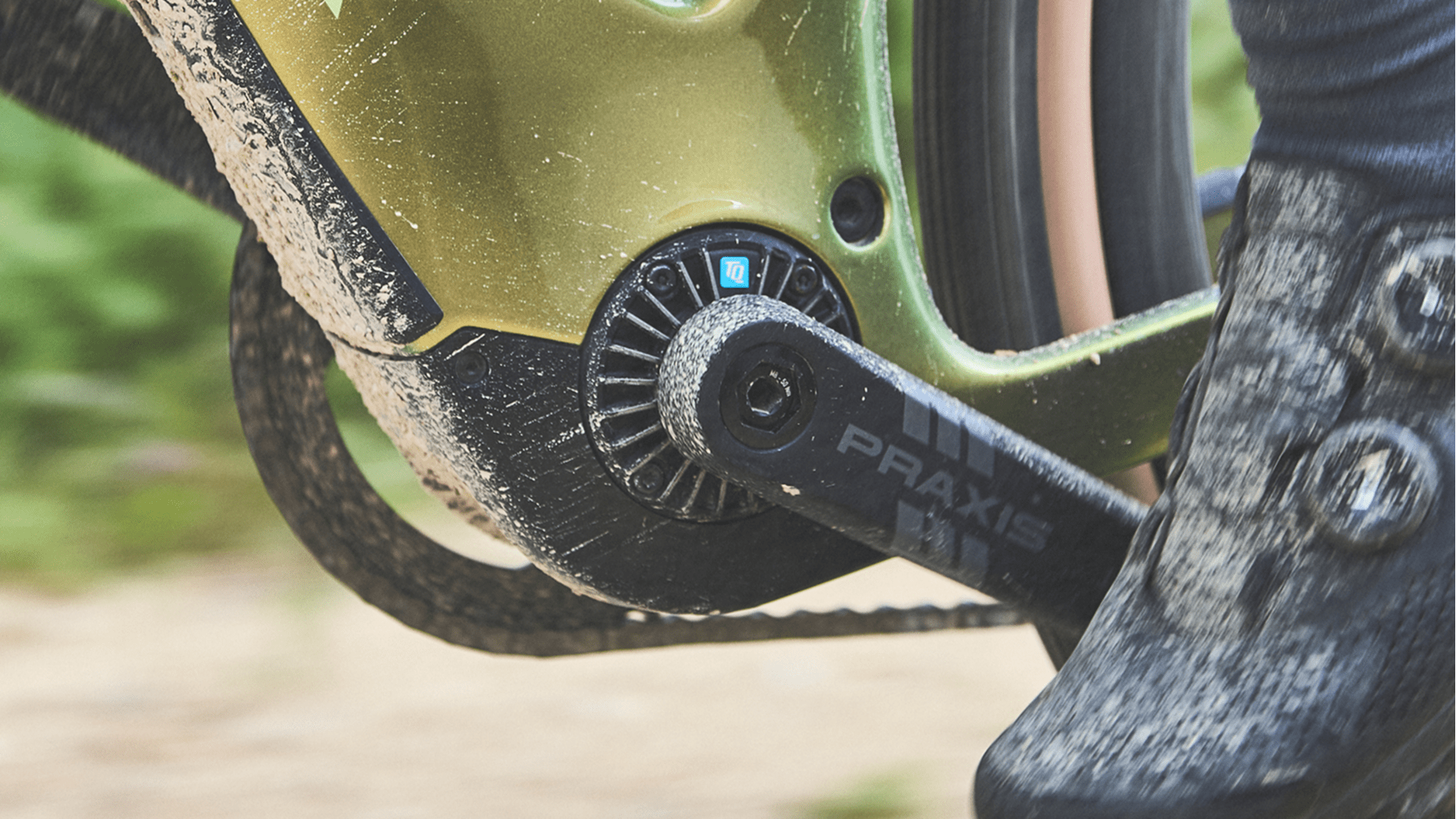

The TQ HPR60 harmonic pin-ring motor is ultra-compact, extremely quiet and tuned to feel completely natural on the bike. It delivers smooth assistance on climbs and headwinds without turning the Checkpoint+ into a heavy or overpowered e-bike.
The TQ LED display offers Bluetooth and ANT+ connectivity, while the Trek Central app lets you customise assist modes, track rides and monitor range.

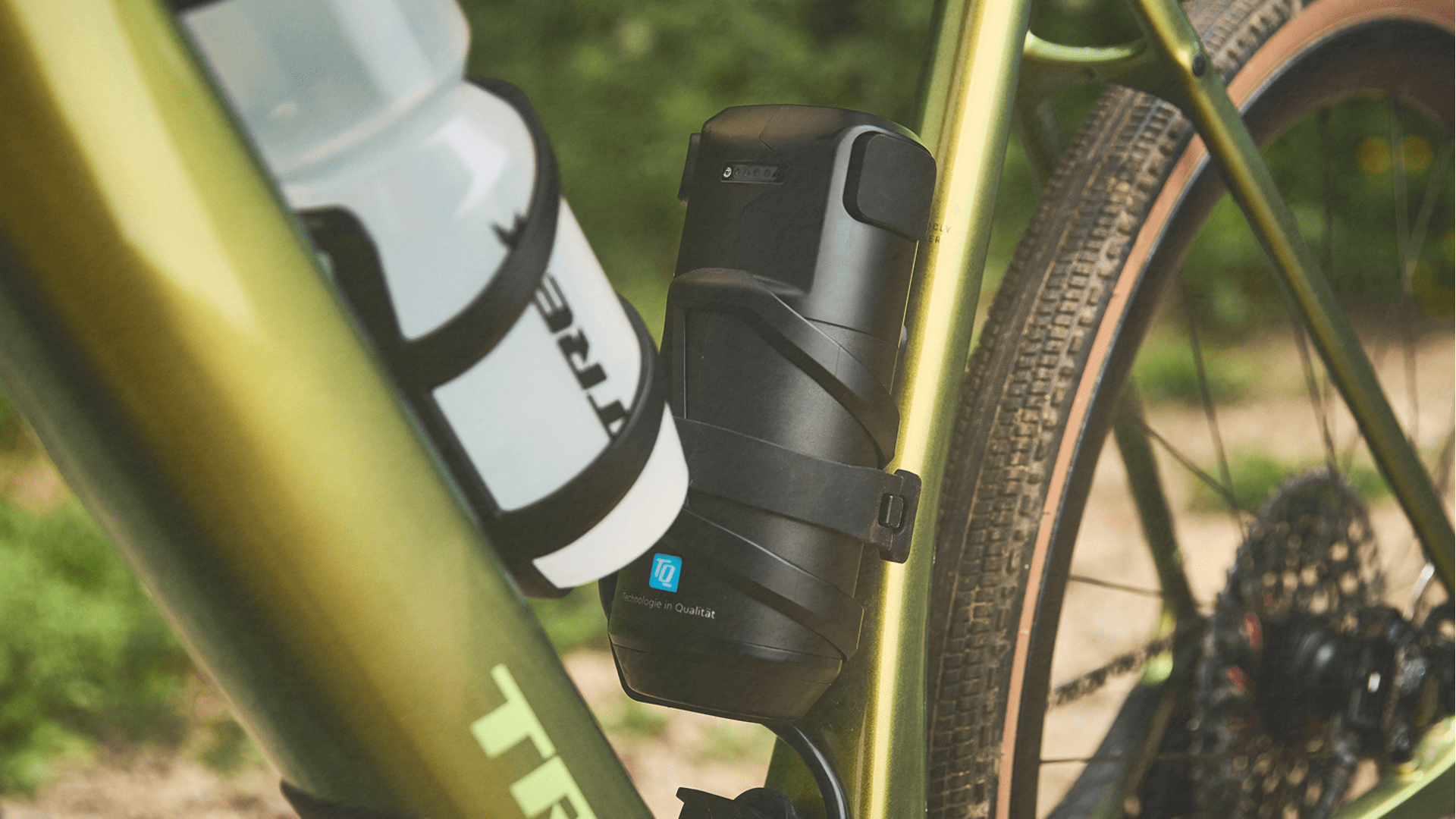

Planning an epic route? The optional 160 Wh range extender fits neatly into a bottle cage and boosts total capacity by around 44%, giving you the confidence to go further on longer gravel adventures.

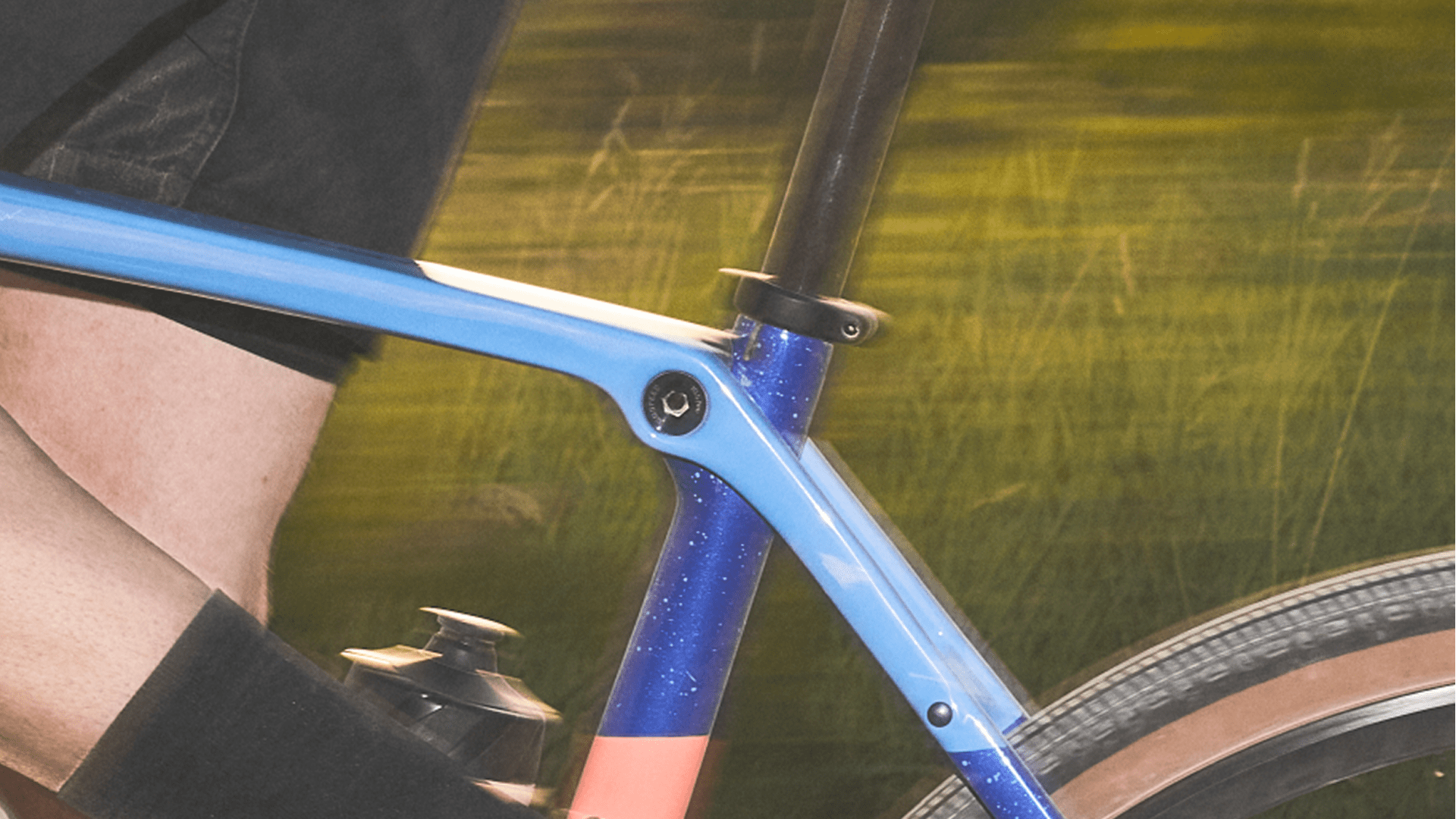

When the surface turns rough, Trek’s IsoSpeed decoupler helps absorb chatter and repeated bumps from gravel and broken tarmac. This reduces fatigue and keeps you fresher for longer rides and multi-hour adventures.
| Motor | TQ HPR60 mid-drive, 60 Nm |
| Battery | TQ 360 Wh integrated (optional 160 Wh extender) |
| Drivetrain | Shimano GRX 1×12-speed |
| Frame | 500 Series OCLV Carbon with IsoSpeed |
| Tyre clearance | Up to 50 mm (as measured) |
| Weight | Approx. 13.8 kg (size ML, no tubes) |
The Trek Checkpoint+ SL 5 is designed for riders who want electric assistance without sacrificing the feel of a true gravel bike. With its lightweight carbon frame, natural-feeling TQ motor, long-range options and comfort-focused IsoSpeed technology, it’s ideal for UK gravel routes, endurance rides and mixed-surface adventures.
Available now from eBike-Centre with UK-legal 25 km/h (15.5 mph) assistance and full workshop support.
| Frameset | |
|---|---|
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
| Fork | Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle |
| Weight & Limits | |
| Weight | ML – 13.81 kg / 30.45 lb (with TLR sealant, no tubes) |
| Maximum total weight | 125 kg (bike + rider + cargo) |
| E-system | |
| Motor | TQ-HPR60, 60 Nm, 250 W maximum continuous rated power, 350 W peak power |
| Battery | TQ 360 Wh |
| Charger | TQ 4A charger |
| Computer / display | TQ LED display with Bluetooth & ANT+ connectivity |
| E-bike classification | Class 1 |
| Drivetrain | |
| Shifter | Shimano GRX RX820, 12-speed |
| Rear derailleur | Shimano GRX RX822, 51T max cog |
| Crank | Praxis Alloy (165 mm XS/S, 170 mm M/ML, 172.5 mm L/XL) |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Max chainring size | 1x: 44T |
| Wheels & Tyres | |
| Front wheel | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Front skewer | Bontrager Switch chamfered thru axle |
| Rear skewer | Bontrager Switch chamfered thru axle, removable lever |
| Tyres | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Sealant | Bontrager TLR sealant, 180 ml / 6 oz |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards (as measured) |
| Components | |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Bontrager Elite Gravel, alloy (40 cm XS/S, 42 cm M/ML, 44 cm L, 46 cm XL) |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree (70 mm XS; 80 mm S/M; 90 mm ML/L; 100 mm XL) |
| Brakes | |
| Brake lever | Shimano GRX RX820, 12-speed |
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Max rotor size | 180 mm front and rear |
Specifications may change without notice. Range, weights and sizing details are manufacturer provided and can vary by production and configuration.
| Colours | FJORD BLUE/COBALT BLUE, MATTE BRONZE AGE/DARK WEB |
| Sizes | L, M, ML, S, XL, XS |
| Brand | Trek |
| Model Year | 2026 |
| Barcodes | 197216222545, 197216222552, 197216222569, 197216222576, 197216222583, 197216222590, 197216222606, 197216222613, 197216222620, 197216222637, 197216222644, 197216222651 |
| SKUs / Part Numbers | 5337519, 5337520, 5337521, 5337522, 5337523, 5337524, 5337525, 5337526, 5337527, 5337528, 5337529, 5337530 |

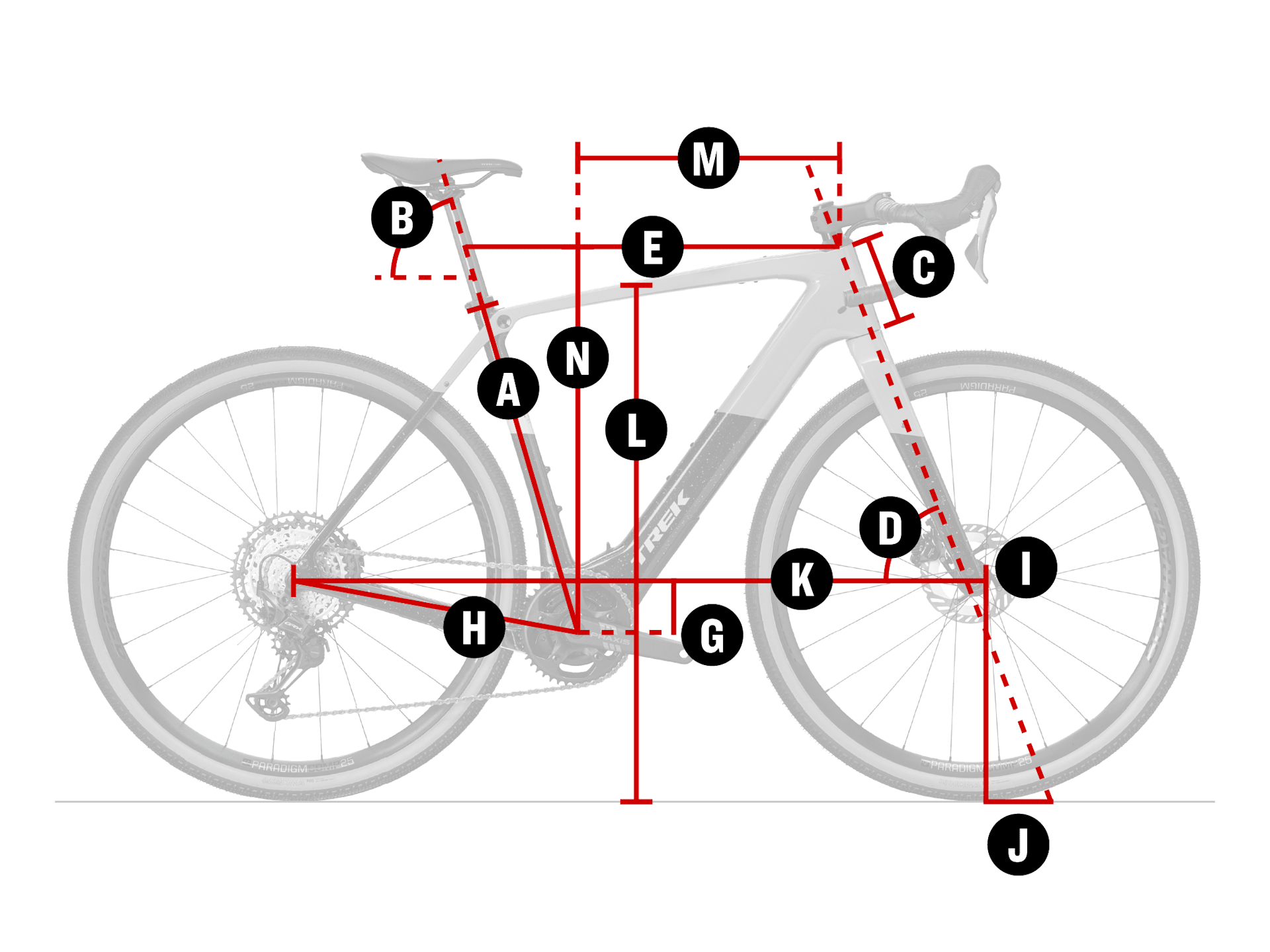

Geometry chart for the Trek Checkpoint+ SL 5. Measurements are shown in centimetres (cm) unless stated otherwise. Letters in the table correspond to the diagram below.
Diagram reference: A–N labels match the table rows below.
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| A – Seat tube | 44.5 | 48.0 | 50.5 | 53.0 | 55.0 | 57.5 |
| B – Seat tube angle | 74.0° | 74.0° | 73.3° | 73.3° | 73.3° | 73.3° |
| Effective seat tube angle | 72.7° | 73.0° | 72.8° | 72.8° | 72.8° | 72.8° |
| C – Head tube length | 8.6 | 10.6 | 13.0 | 15.1 | 17.1 | 19.1 |
| D – Head angle | 71.0° | 71.4° | 71.6° | 72.0° | 72.1° | 72.4° |
| E – Effective top tube | 53.6 | 54.7 | 56.6 | 57.8 | 58.9 | 60.1 |
| G – Bottom bracket drop | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| H – Chainstay length | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| I – Offset | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| J – Trail | 7.1 | 6.8 | 6.8 | 6.4 | 6.4 | 6.2 |
| K – Wheelbase | 102.3 | 103.2 | 104.4 | 105.2 | 106.3 | 107.2 |
| L – Standover | 74.6 | 77.2 | 79.9 | 81.3 | 83.7 | 86.1 |
| M – Frame reach | 38.0 | 38.6 | 39.1 | 39.7 | 40.2 | 40.8 |
| N – Frame stack | 53.5 | 55.6 | 57.9 | 60.1 | 62.0 | 64.0 |
Geometry figures are supplied by Trek. Specifications and measurements may change without notice.
